Hydraulic tilt maintenance is the difference between a tilt-deck equipment trailer that works for 15+ years and one that strands you mid-load in year three. The tilt system is hydraulic — pump, lines, cylinder, valves — and like any hydraulic system, it punishes neglect. This guide walks through hydraulic tilt maintenance for equipment trailers in 2026: monthly checks, annual service, common failure modes, and the brands of fluid and filters worth using.
Why Hydraulic Tilt Maintenance Matters
The tilt cylinder lifts and lowers thousands of pounds of deck plus equipment. Inside that cylinder are seals (rubber and Teflon) that wear under pressure cycles. Outside is a piston rod that nicks if debris is dragged across it. The reservoir holds fluid that degrades from heat and contamination. Skipping hydraulic tilt maintenance lets all three issues compound.
For broader buyer guidance, see our equipment trailers buyer’s guide.
Monthly Hydraulic Tilt Maintenance Checklist
- Fluid level: Check reservoir window or dipstick. Fill with AW32 or ISO 32 hydraulic fluid as needed.
- Cylinder rod inspection: Wipe the rod clean, look for nicks, scratches, or rust spots. Catch damage before it scores the seal.
- Hose inspection: Look for cracks, weeping fluid, or loose fittings. Replace any hose with visible damage.
- Battery charge: Hydraulic pumps run off the trailer battery. A weak battery causes slow tilt and overheating.

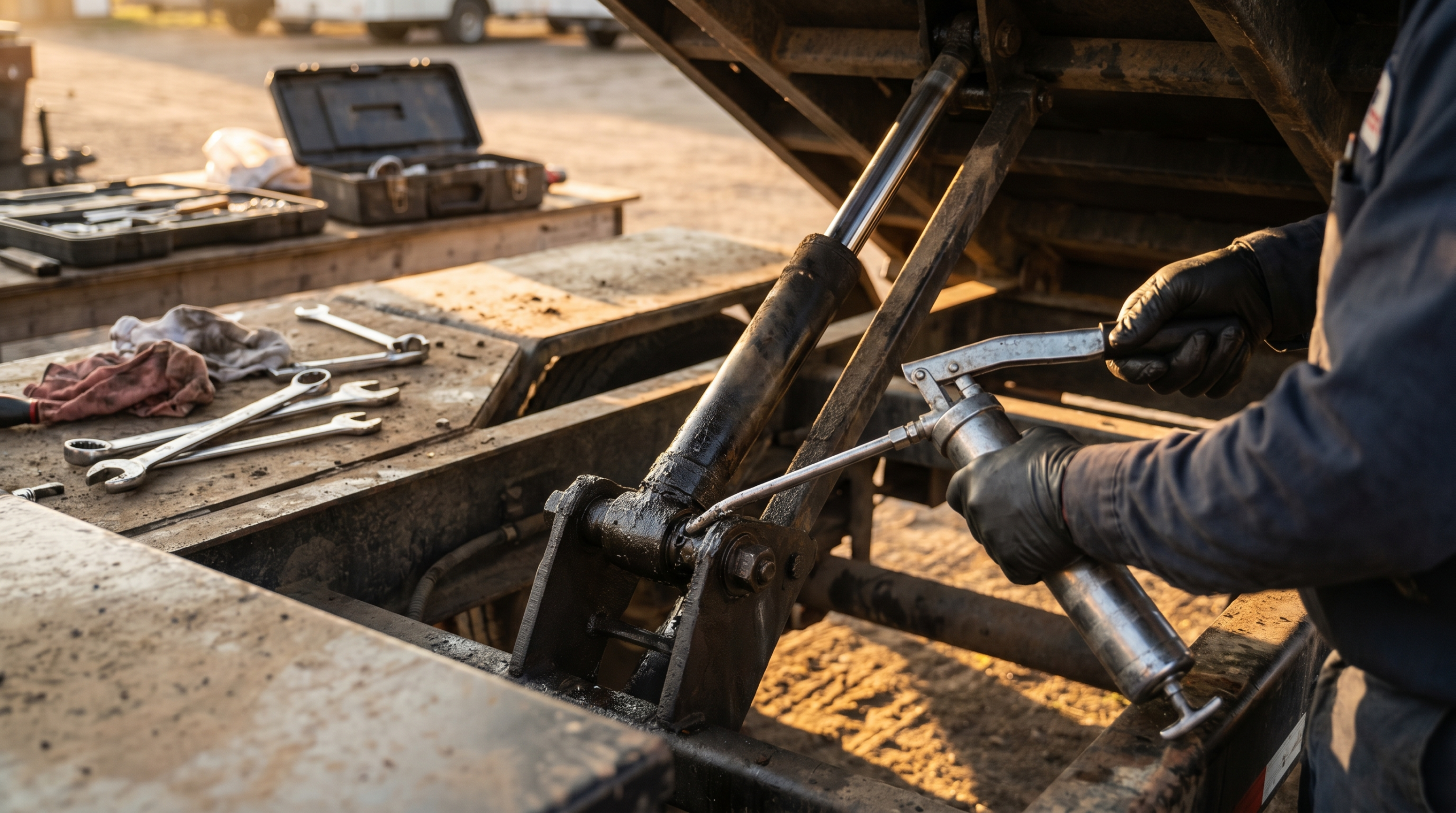

- Pivot pin lubrication: Grease the deck pivot pins where the deck hinges. Dry pins create binding and loud creaks.
Annual Hydraulic Tilt Maintenance
Fluid Change
Hydraulic fluid degrades from heat cycling. Replace at year 1 (break-in), then every 2 years thereafter. A complete change uses about 1.5–2 quarts. Drain via the cylinder bleed port or pull the cylinder, refill, then cycle the deck several times to bleed air.
Filter Replacement
Most KTI and Bucher tilt systems use an inline 10-micron filter on the return line. Replace yearly. $15–$30 per filter.
Seal Inspection
If the cylinder is leaking fluid down the rod or won’t hold position when stopped, the seal is failing. A seal kit costs $40–$80 plus 1–2 hours labor.
Pump Brush Inspection
If your pump uses a brushed motor (most do under $500 list price), inspect brushes annually for wear. Brushes worn below 25 percent of original length need replacing. Cost: $80–$140 in parts and 30 minutes labor.
Common Hydraulic Tilt Failures
Slow Tilt
Causes (in order): low battery, low fluid, cold fluid (winter), worn pump, restricted line. Test in this order before assuming the worst.
Won’t Hold Position
Cylinder seal failure or check valve leak. Have a hydraulic shop test pressure to diagnose.
No Movement at All
Electrical: blown fuse (always check first), failed solenoid, dead motor, bad switch. The fuse fix is the most common and the cheapest — replace the 30A in-line fuse before paying a shop.
Loud Pump Noise
Cavitation — air in the system from low fluid or a sucked hose. Top up fluid, cycle the deck several times to bleed air.
Hydraulic Tilt Maintenance Schedule Reference
| Interval | Tasks |
|---|---|
| Every Use | Visual inspection of rod, hoses, fluid level |
| Monthly | Grease pivots, check fluid, charge battery, inspect rod |
| Yearly | Change filter, inspect pump brushes, check valve operation |
| 2 Years | Full fluid change, seal inspection |
| 5 Years | Cylinder rebuild kit (preventative) |
| 10 Years | Pump rebuild or replacement |
Fluid and Filter Brand Picks
Hydraulic fluid: Mobil DTE 25 (AW32) is the industrial standard. Texaco Rando HD 32 is the value pick. Both run $25–$45 per gallon.
Filters: Donaldson and Parker are the brands hydraulic shops trust. Avoid generic imports.
Greasing: Use marine-grade waterproof grease on pivot pins. Lucas Red & Tacky is the working pick.
Outbound References
For hydraulic system standards, the National Fluid Power Association standards govern fluid specs and component ratings. For OSHA-compliant maintenance practices, see OSHA 29 CFR 1910.
Common Questions About Hydraulic Tilt Maintenance
Can I do hydraulic tilt maintenance myself?
Most of it, yes. Fluid changes, filter swaps, and brush replacement are DIY with basic tools. Cylinder rebuilds are best left to a hydraulic shop unless you have a press and the right seal-installation tools.
What’s the right fluid for cold-weather use?
AW22 or AW32 with a multi-viscosity additive package. Standard AW32 thickens significantly below 20°F, slowing the tilt. Pre-warming with a battery blanket or shop time helps in extreme cold.
How long should a tilt cylinder last?
15–20 years with regular hydraulic tilt maintenance. Less than 8 years means it was abused or used cheap fluid.
What does a full rebuild cost at a shop?
$300–$600 for the cylinder, $200–$400 for the pump. Compare to a new tilt-deck trailer at $8K+, the rebuild is often the right call.
Ready to Buy?
Browse equipment trailers for sale with hydraulic tilt and look for trailers spec’d with KTI or Bucher pumps for the best long-term reliability.
Pair with our tilt vs ramp comparison and the hydraulic pump brand rankings.
Request a free delivered quote with your spec and we’ll send out-the-door pricing same business day.
Hydraulic Tilt Maintenance Tools You Need
Set yourself up with a basic toolkit and you can do 80 percent of hydraulic tilt maintenance in your shop.
- Hydraulic fluid — 1–2 gallons of AW32 / ISO 32
- Filter wrench (or strap wrench) for the inline filter
- Pressure gauge with hydraulic fittings if you want to test cylinder pressure
- Grease gun + marine-grade grease for pivot pins
- Multimeter to test motor and solenoid voltage
- 30A and 100A spare fuses in the trailer toolbox
- Spare seal kit for the cylinder size you have ($40–$80, lasts on the shelf years)
Storing the Trailer Off-Season
If your tilt-deck trailer sits 3+ months without use (winter for landscapers), proper storage prevents 80 percent of off-season failures.
Battery Maintenance
Either keep a trickle charger plugged in, or remove the battery and store inside on a board (not concrete). A discharged battery freezes in winter and is destroyed.
Cylinder Rod Protection
Wipe the cylinder rod clean and apply a thin coat of grease before storage. This prevents rust pitting that scores the seal next season.
Off-Pavement Storage
Park on dry concrete or wood blocks if the trailer sits outside. Direct contact with damp ground rusts the underside of the deck and frame.
When to Replace vs Rebuild
The hydraulic tilt maintenance threshold for replace-vs-rebuild depends on the age and brand. A 5-year-old Bucher or KTI cylinder showing seal failure is worth a $40 seal kit and 1 hour of labor. A 12-year-old generic-import cylinder with the same symptom is worth replacing entirely with a known-brand unit. The math: total rebuild cost vs new cost vs trade-in trailer value.
For routine inspection points before any work, see our trailer inspection checklist.
