Specifications
| GVWR | 7,000 lb |
|---|---|
| GAWR (per axle) | 3,500 lb |
| Deck | 60 in. (5 ft) wide x 10 ft (120 in.) long |
| Side Height | 19 in. |
| Main Frame | 5 in. C-channel |
| Tongue | 5 in. C-channel |
| Crossmembers | 3 in. channel, 16 in. on-center |
| Floor | 10 gauge steel |
| Walls | 12 gauge formed steel |
| Floor Plate | 12 gauge thread plate steel |
| Coupler | 2-5/16 in. ball adjustable |

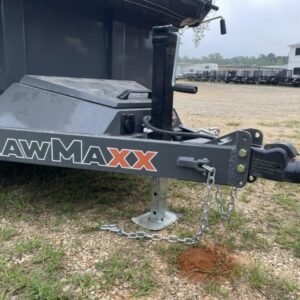

| Jack | 7,000 lb side-wind drop-leg |
| Toolbox | With hydraulic pump, battery, and charger |
| Stake Pockets | 3-7/8 in. x 1-13/16 in. ID |
| Color | Gray |
| VIN | 3EVBD1020T1125959 |
| Year | 2025 |

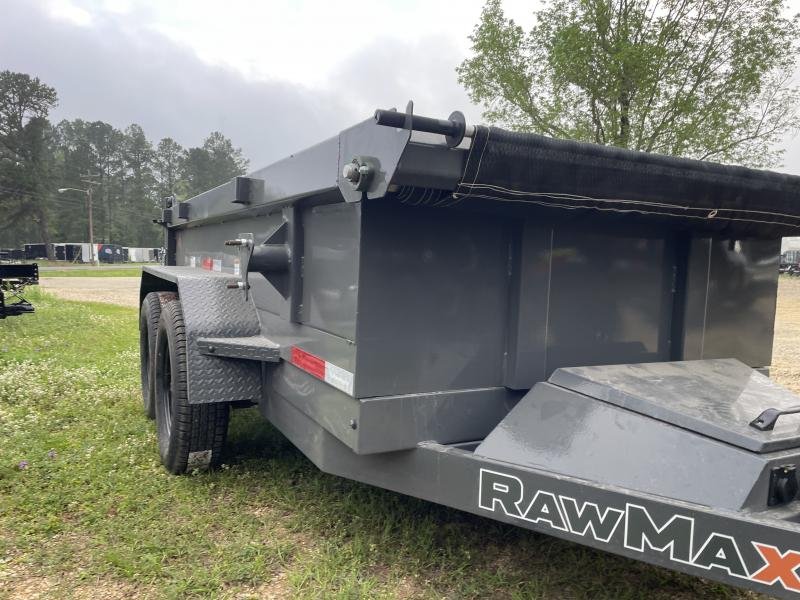

| Model | SDX 10 ft x 60 in. 7K |
| Manufacturer | Raw Maxx |
Why a 5×10 Mini Dump Trailer?
Most dump trailers start at 6×10 or 6×12 sizes, all rated for 9,990 lb GVWR or higher. The Raw Maxx mini dump trailer at 5×10 with 7,000 lb GVWR fits a different buyer: someone with an SUV or smaller truck (Ridgeline, Ranger, Tacoma, Frontier) who can’t legally tow a 9,990 lb trailer fully loaded. The 7K rating works with most modern half-ton-class tow vehicles even loaded, and the smaller footprint stores in a single-car garage or under a typical 8-foot RV cover.
What Can You Haul?
- 1 yard of crushed stone or 1.5 yards of mulch (within the 4,500 lb usable payload after subtracting trailer weight)
- Yard waste, leaf removal, brush from residential cleanup
- Compact lawn equipment (mid-size mower or light tractor under 4,000 lb)
- Roof tear-off debris from a residential garage or shed
- Snow and ice-melt for residential or HOA plow operations
Free Nationwide Delivery
PrimeLoad runs free-included delivery to all 50 US states on every dump trailer in our inventory. East Coast and Midwest: 5 to 10 business days. West Coast and rural: 7 to 14 days. The driver hands over the title, keys, and bill of lading at the curb. Full shipping policy.
Frequently Asked Questions
What truck can pull a 7K mini dump trailer?
Most modern half-ton trucks (F-150, Silverado 1500, Ram 1500, Tundra, Titan) handle 7,000 lb tow ratings even at low trim levels. Mid-size trucks (Tacoma, Ranger, Frontier, Colorado, Maverick) handle the 7K rating in higher trims with the towing package. Confirm via your specific truck’s door jamb sticker.
Why a 60-inch (5-foot) wide deck instead of 6-foot?
5-foot width fits between standard residential gate openings (4-foot gates with hardware are common) and stores in a single-car garage. 6-foot width starts to need wider gate access. For homeowners storing the trailer in a residential setting, the 5-foot Raw Maxx mini dump trailer is the practical compromise.

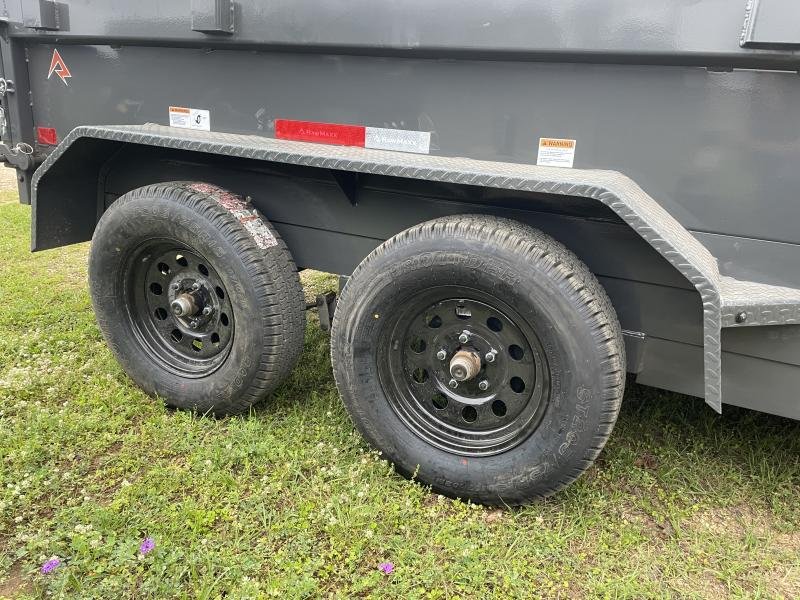

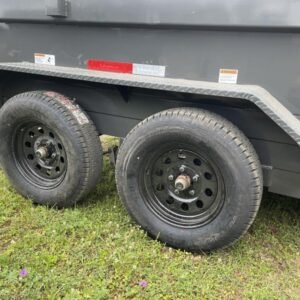

Are 3,500 lb axles enough?
(2) 3,500 lb axles total 7,000 lb capacity, exactly matching the 7K GVWR rating. There is no margin built in, but for a 4,500 lb usable payload application, the spec is right-sized. Heavier axles would just add empty weight without added capacity benefit.
